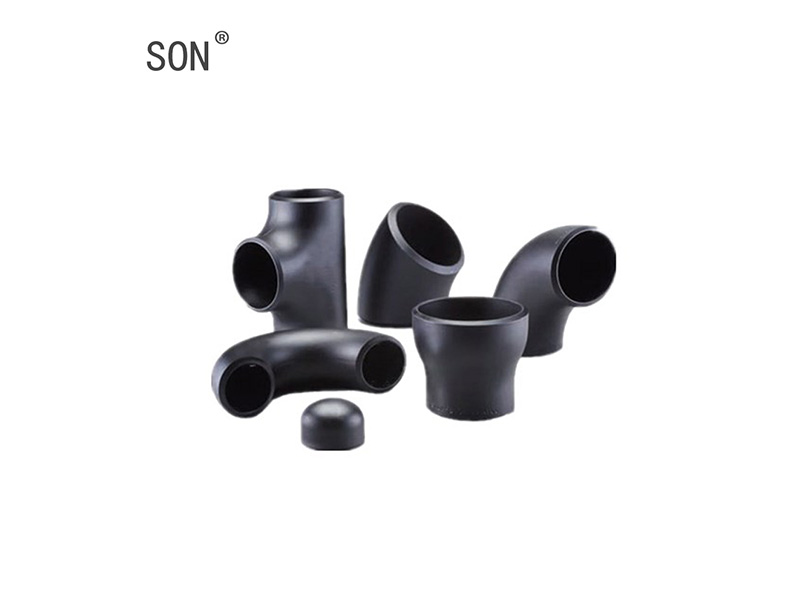

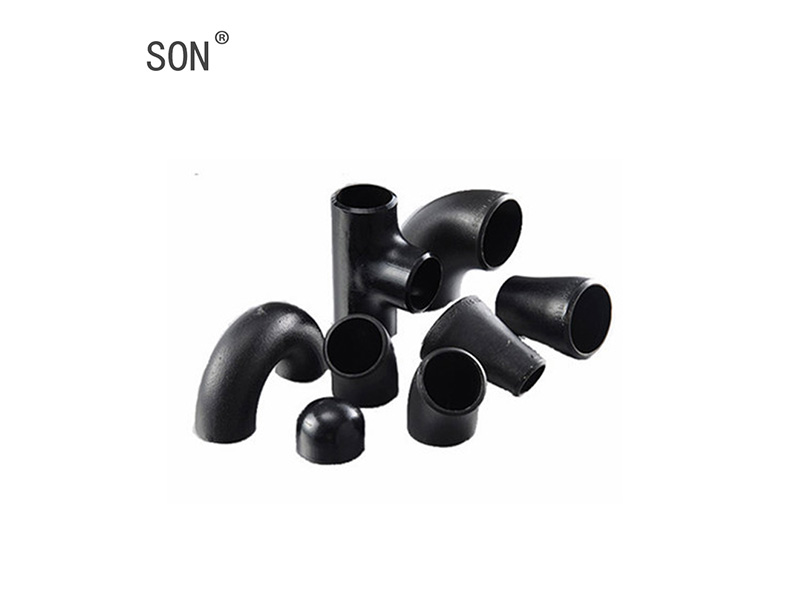

Black Painted Carbon Steel Pipe Fittings

Share:

Carbon steel pipe fittings is a weldable pipe fitting that allows for change of direction of flow , to branch off or attach auxiliary equipment

How a carbon steel pipe fitting is made ?

There are numerous processes for manufacturing butt welded fittings , several examples listed as follows .

 TEES

Extrusion method (Hot Forming )

The hot-extrusion process consists of enclosing a piece of metal , heated to forging temperature,in a chamber called a “container” having a die at one end with an opening of shape of the desired finished section , and applying pressure to the metal through the opposite end of the container

Elbows:

Mandrel Method (Hot Forming )

One of the most common manufacturing methods for manufacturing Elbows from pipes.

After heating the raw material, it is pushed over a die called “mandrel “ which allows the pipe to expand and bend simultaneously .

CAPS:

Deep Drawing method

One of the most common manufacturing methods for caps ,where plate is cut out in a circle and formed by deep drawing .

Quality Control

We has the process design, fabrication, welding, heat treatment, chemical cleaning and product testing and inspection abilities

So we can assure you that our goods must be superior quality

Product NameBlack Painted Carbon Steel Pipe Fittings
MaterialCarbon steel
StandardASTM/JIS/DIN/BS/GB/GOST
Model

Tee (straight and reducing )

180 DEG return

Elbow (45/90/180 DEG )

Cap

Reducer (concentric and Eccentric )

TypeSeam or seamless
Surface treatmentBlack paint, Varnish, Anti-rust oil, Galvanized, Anti Corrosion Coating
Wall thicknessSCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS
Size1/2"to 48"
CertificateISO9001: 2008
Ends

Under 2 inch plain end.

2 inch and above Beveled.

ApplicationOil, Chemical Industrial, Water Conservancy, electric power, boiler, machinery, metallurgy ect
PackageWooden Case, pallet or as per the customers' requirements
PaymentT/T or L/C
